This direct-drive machine offers efficient and powerful operation, ideal for demanding tillage tasks thanks to its simple and durable mechanical system.

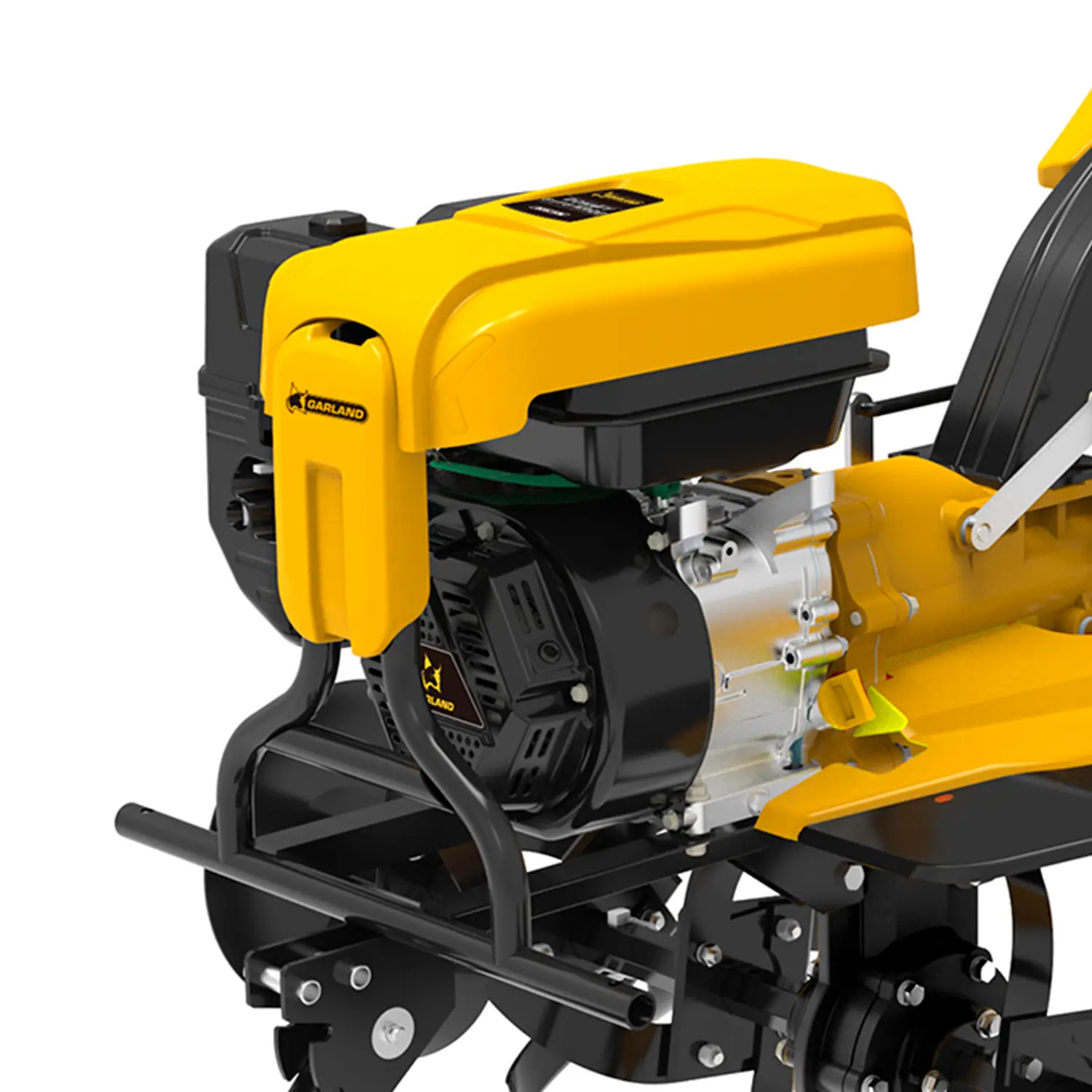

With a working width of 116 cm, it covers large areas in less time, optimizing performance with each pass.Its 223 cc engine provides the necessary strength to handle tough soils without losing power or stability.

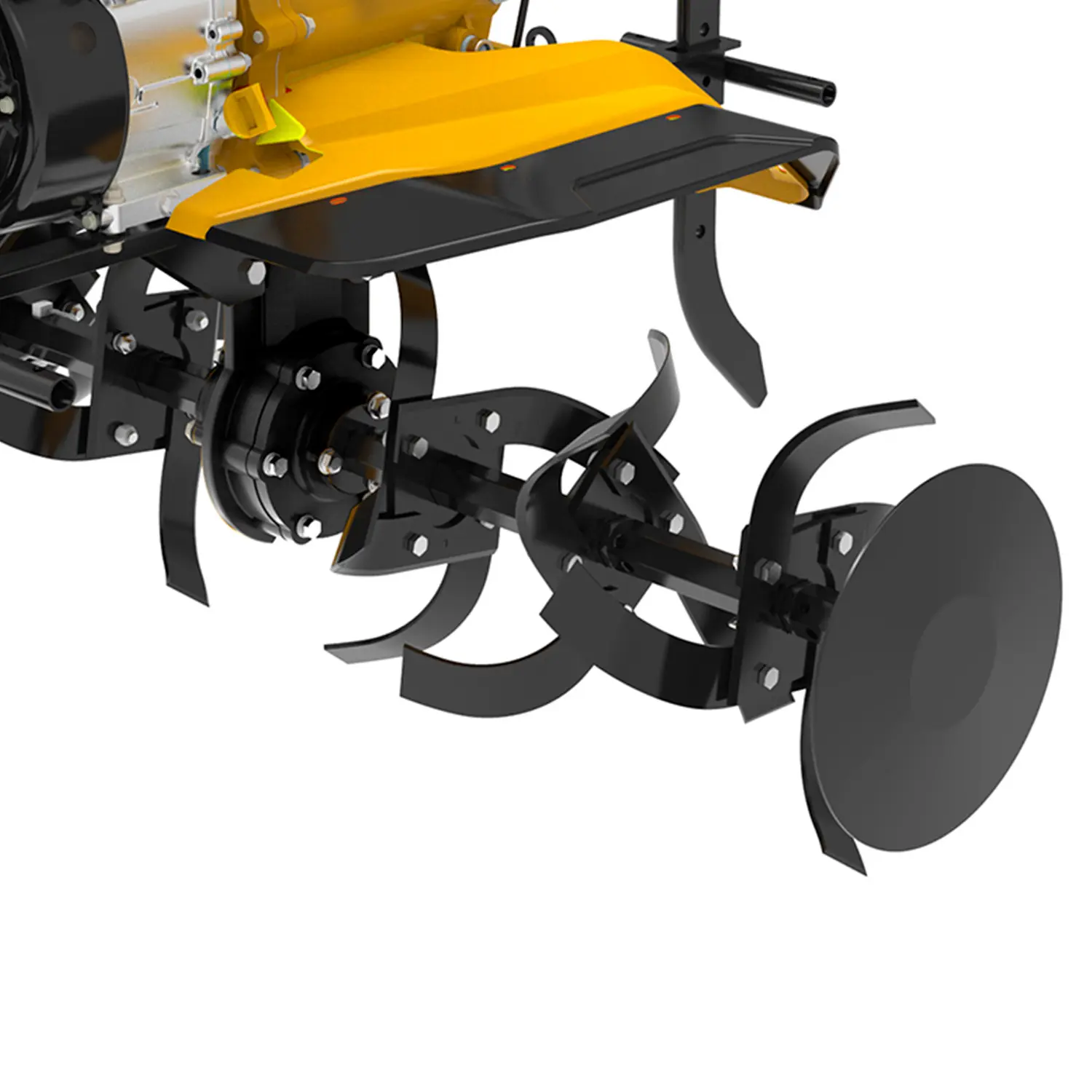

Equipped with six hexagonal-shaft blades and plant protection discs, it allows for precise and safe tilling near crops.
The gearbox includes two forward gears and one reverse, making it easy to maneuver and adaptable to all types of terrain.
Engine Type.Garland 4 T
Cylinder capacity (cc)223
EURO standardEuro V
Electronic ignition (Yes/No)Si
Start (Manual/Electric)Manual
Fuel type (s/p 95 + oil 2%)Gasolina 95
Power (kW)4,5
Maximum engine revolutions min-13600
Torque (Nm)12
Working width (mm)1160
Blade dimensions (mm)320
Sound pressure (dB (A))93
Number of cutter groups / blades6
Fuel dep. vol. (l)3,6
Oil crankcase vol. (l)0,6
Type of engine oil15W-40
Transmission oil vol. (l)2
Transmission oil typeSAE 15W-40
Speeds (number of d + number of a)2+1
Empty machine weight (kg)74
Packaging weight (kg)83
Packaging length (cm)52
Packaging width (cm)88,5
High packaging (cm)56
